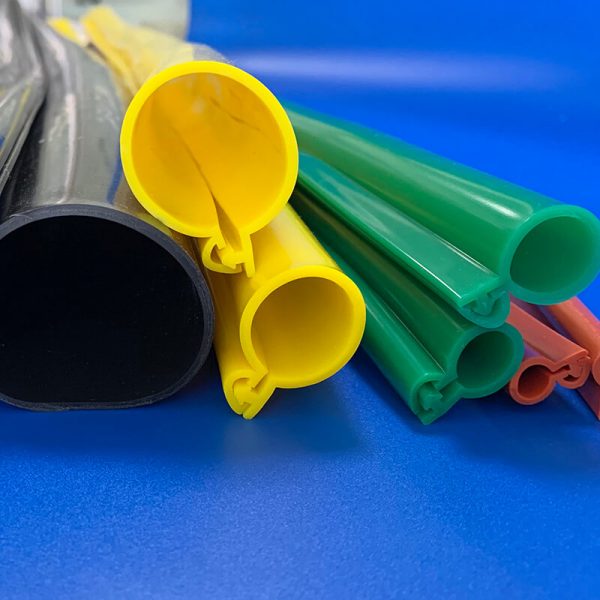

Different types and colors of Tenchy's high-quality silicone rubber insulation tubes for power cables

Yellow silicone rubber insulation tube with unique buckle design securing power cables

Superior yellow silicone insulation tube from Tenchy

Tenchy's excellent silicone rubber insulation tubes for power cables in various sizes and colors

Silicone Insulation Tube for Power Cables

Tenchy’s silicone rubber insulation tubes provide reliable protection for your power cables, ensuring optimal performance and longevity. Crafted from high-grade silicone rubber, these tubes offer superior electrical insulation and resistance against environmental factors such as heat, moisture, and UV radiation. As a leading silicone tubing manufacturer, Tenchy offers these insulation tubes for both 10kV and 35kV voltage levels, making them suitable for a wide range of applications.

High-quality silicone rubber insulation tube for exceptional electrical insulation
Outstanding mechanical strength and durability for long-lasting performance
Resistant to weathering, UV radiation, and temperature fluctuations
Easy installation and disassembly for convenient maintenance and inspection
Available for both 10kV and 35kV power cable insulation

Get A Free Quote

Silicone Insulation Tube Benefits

Enhanced Safety: Superior electrical insulation minimizes the risk of electrical hazards.
Increased Durability: Resistance to harsh conditions extends the lifespan of your power cables.
Improved Reliability: Consistent performance even in challenging environments.
Easy Maintenance: Simple installation and removal processes for convenient upkeep.

Silicone Insulation Tubes Specifications

Parameter	Unit	10kV	35kV
Material	–	Silicone rubber	Silicone rubber
Rated Voltage	kV	10	35
Dielectric Strength	kV/mm	≥ 25	≥ 25
Tensile Strength	MPa	≥ 10	≥ 10
Elongation at Break	%	≥ 400	≥ 400
Tear Strength	kN/m	≥ 20	≥ 20
Volume Resistivity	Ω·m	≥ 1 x 10^14	≥ 1 x 10^14
Water Absorption	%	≤ 0.5	≤ 0.5
Continuous Operating Temp	°C	-50 to +180	-50 to +180
Flammability	–	UL 94 V-0 or better	UL 94 V-0 or better
Inner Diameter	mm	Customizable based on cable	Customizable based on cable
Wall Thickness	mm	Customizable based on voltage	Customizable based on voltage
Length	m	Customizable based on demand	Customizable based on demand

Please note: Dimensions like inner diameter and wall thickness can be customized based on your specific power cable requirements.

Get Free Quote of Silicone Insulation Tubing

Tenchy is a trusted silicone tubing manufacturer and silicone rubber tube supplier, known for our commitment to quality and customer satisfaction. Our silicone rubber insulation tubes are manufactured using premium materials and rigorous quality control processes, guaranteeing exceptional performance and reliability. We offer competitive pricing and customization options to meet your specific needs.

Get A Free Quote Now

Products Categories

Silicone Tubing

Food Grade Silicone Tubing

Medical Grade Silicone Tubing

Medical Breathing Machine Tube

Custom Silicone Tubing

Thin Wall Silicone Tubing

Biopharma-Grade SS Wire Reinforced Silicone Hose

SS Wire Braided Reinforced Silicone Hose

Polyester Braided Reinforced Silicone Hose

Silicone Rubber Insulation Tube for Power Cables

Flex Silicone Milk Tubing

Silicone Heat Shrink Tubing

Reusable Silicone Straws

Customizable Small Diameter Silicone Tubing – 0.5mm ID

LED Silicone Tubing

Extruded Silicone Seal Gasket & Strips

Silicone Sealing Strip U,D,E,P Shape for Multi Sectors

High-Temperature Silicone Rubber Cords & Seals

Silicone Seal Rings & Gaskets

Food Container Seals

Custom Silicone O Ring

Affordable Spliced & Vulcanized Silicone O-Rings

Custom Molded Silicone Rubber Gaskets

Silicone Molded Products

Conductive Silicone Tubing & Sheet

Food Grade Silicone Gasket & Seal

Silicone Foam

Heat Resistant Silicone Foam Sheets, Pads & Rolls

Silicone Sponge Cords, Gaskets, Strips, Tubes & More

Liquid Silicone Rubber Products

Get A Free Quote

Silicone Insulated Tube Applications

Tenchy’s Silicone Rubber Insulation Tubes are versatile, finding use in:

Power transmission and distribution systems
Industrial and commercial electrical installations
Automotive wiring
Aerospace and aviation
Electronic devices

FAQs

1. What is a silicone insulation tube for power cables?

A Silicone Insulation Tube is a protective covering made of silicone material designed to insulate and protect power cables from environmental factors like moisture, heat, and abrasion.

2. What are the key benefits of using a silicone insulated tube?

Key benefits include superior heat resistance, excellent electrical insulation properties, high flexibility, resistance to UV radiation, moisture, and chemicals, and long service life.

3. Can silicone insulation tubes be customized according to specific requirements?

Yes, they can be customized in terms of size, thickness, and color. Please consult with Tenchy for customization options.
